Water Softener system
Overview
Smart Water Softening Solution for Every Need
Our Fully Automatic Water Softener is designed to deliver pure, soft water effortlessly for individual houses, hospitals, and hotels. Built with advanced ion-exchange technology, it automatically removes hardness-causing minerals like calcium and magnesium, ensuring scale-free water that protects plumbing, appliances, and improves overall water quality.
✅ Fully Automatic Operation – No manual intervention required
✅ Ideal for Homes, Hospitals & Hotels – Reliable performance for domestic & commercial use
✅ Improves Appliance Life – Prevents scaling in pipes, heaters, and fixtures
✅ Healthy & Safe Water – Gentle on skin, hair, and laundry
✅ Compact & Efficient Design – Easy installation and low maintenance
General

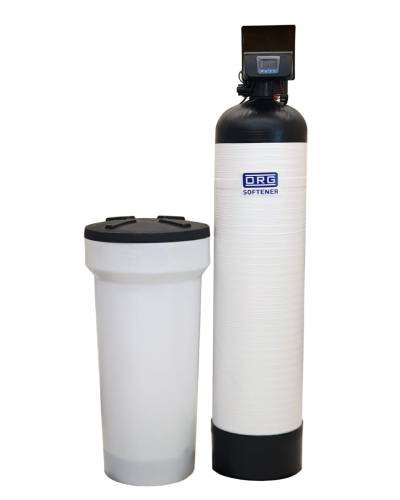

- Product code: 3703
Specification for Softener
- Brand: ORG
- Max Flow Rate: 1500 – 2500 LPH
- Working Temperature: 5 to 50°C
- Working Pressure: 1.5 – 4 Kg
- OBR (Basis on total hardness 400 ppm): 10,000 Liter
- Resin Quantity: 80 Liters (TEKLEEN Brand)
- Salt Required of Reg.: 12 Kg
- Brine Tank: 100 Liter Inbuilt with Brine Valve
- Inlet / Outlet Size: 1
- Power: 220V AC
- Vessels: ORG – FRB 1354
- MULTIPORT VALVE: AUTO RUNXIN SOFTNER WITH FLOW CONTROLLER, 63604
- SV SIZE :1/2
- Skid / Stand : Option not included
- LOW PRESSURE SWITCH FOR MPV : Aster
- USED IN : SUMP to OVERHEAD WATER TANK
- OBR (Basis on total hardness 300 ppm) : 13,500 Liter
- OBR (Basis on total hardness 500 ppm): 8,000 Liter
- OBR (Basis on total hardness 600 ppm): 6,700 Liter
General
- Product Code: 3704
Specification for Softener
- Brand: ASG
- Max Flow Rate: 2000 – 3000 LPH
- Working Temperature: 5 to 50°C
- Working Pressure: 1.5 – 4 Kg
- OBR (Basis on total hardness 400 ppm): 15,500 Liter
- Resin Quantity: 125 Liters (TEKLEEN Brand)
- Salt Required of Reg.: 18 Kg
- Brine Tank: 200 Liter Inbuilt with Brine Valve
- Inlet / Outlet Size: 1"
- Power: 220V AC
- Vessels: FRB 1465
- Multiport Valve: Auto Runxin Softner with Flow Controller, 63604
- SV Size: 1/2
General
- Product Code: 3712
Specification for Softener
- Brand: ASG
- Max Flow Rate: 2500 - 3500 LPH
- Working Temperature: 5 to 50°C
- Working Pressure: 1.5 - 4 Kg
- Resin Quantity: 175 Liters (TEKLEEN Brand)
- Salt Required of Reg.: 25 Kg
- Brine Tank: 200 liter Inbuilt with Brine Valve
- Inlet / Outlet Size: 1"
- Power: 220V AC
- Vessels: FRB 1665
- Multiport Valve: Auto Runxin Softner with Flow Controler, 63604
- SV Size: 1/2"
- Low Pressure Switch for MPV: Aster
- OBR (Basis on total hardness 300 ppm): 29150 Liter
- OBR (Basis on total hardness 400 ppm): 21500 Liter
- OBR (Basis on total hardness 500 ppm): 17500 Liter
- OBR (Basis on total hardness 600 ppm): 14600 Liter
- Softener Packing List: (ORG 1665 Vessel - 1, Runxin Auto 25NB TMS (63604) with PLAP Cover - 1 No, 6 Way Connector - 1 No, ORG LPS for Softener - 1 No, SV 1/2" 12V DC - 1 No, Pressure Gauge - Inline 7 Kg - 1 No, Drainage Tube - 1 Set, Brine Tank 200 Liter - 1 No, Tekleen Resin - 175 Liter, Salt Tablet - 25 Kg)
- Skid / Stand: Option not included
- Used In: Sump to Overhead Water Tank
- Country of Origin: India
General
- Product Code: 3717
Specification for Softener
- Brand: ASG
- Special Function: At the time of regeneration output water getting constantly, inbuilt bypass valve, auto OBR set by hardness
- Max Flow Rate: 1500 LPH
- Working Temperature: 5 to 50°C
- Working Pressure: 1.5 - 6 Kg
- OBR (Basis on total hardness 400 ppm): 3500 Liter
- Resin Quantity: 28 Liter
- Salt Required of Reg.: 6.5 Kg
- Brine Tank: Inbuilt
- Inlet / Outlet Size: 1"
- Power: 220V AC
- Dimensions in mm: L 525 × W 326 × H 1070
- Used In: Sump to Overhead Water Tank
General
- Product Code: 3701
Specification for Softener
- Brand: ASG
- Max Flow Rate: 2000 LPH
- Working Temperature: 5 to 50°C
- Working Pressure: 1.5 - 6 Kg
- OBR (Basis on total hardness 400 ppm): 5750 Liter
- Resin Quantity: 46 Liter
- Salt Required of Reg.: 7 Kg
- Brine Tank: Inbuilt with Brine Valve
- Inlet / Outlet Size: 1"
- Power: 220V AC
- Dimensions in mm: L 392 × W 484 × H 1300
- Used In: Sump to Overhead Water Tank
- Country of Origin: India
General
- Product Code: 3709
Specification for Softener
- Brand: ASG
- Max Flow Rate: 400 to 600 LPH
- Working Temperature: 5° to 70°C
- Working Pressure: 1.5 - 6 Kg
- OBR (Basis on total hardness 400 ppm): 600 Liter
- Resin Quantity: 4.8 Liter
- Salt Required of Reg.: 2.5 Kg
- Brine Tank: Inbuilt with Brine Valve (8 Liter)
- Inlet / Outlet Size: 1/2"
- Power: 220V AC
- Dimensions in mm: L 350 × W 195 × H 520
- Used In: Bathroom Softener
